Summary of Chance Helical Products:
|
PRODUCT
|
Torque Rating (ft*lbs)
|
Ultimate Capacity (kips)*
|
|
| SQUARE SHAFT |
SS125
|
4,000
|
40
|
|
SS5
|
5,700
|
57
|
|
|
SS150
|
7,000
|
70
|
|
|
SS175
|
10,500
|
105
|
|
|
SS200
|
16,000
|
150
|
|
|
SS225
|
23,000
|
200
|
|
| ROUND SHAFT |
RS2875.203
|
5,500
|
49.5
|
|
RS2875.276
|
8,000
|
72
|
|
|
RS3500.300
|
13,000
|
91
|
|
|
RS4500.337
|
23,000
|
138
|
|
|
RS6625.280
|
40,000
|
200
|
|
|
RS8625.250
|
60,000
|
300
|
NOTES:
* Ultimate Capacity shown for Default Kt values – See Published Data
Higher capacities can be accomplished by utilizing a Grout Column – See Helical PULLDOWN® Micropile

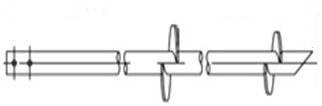

Downloadable Helical Pier CAD Drawings:
AB Chance CAD Drawings/Resources
|
DESCRIPTION
|
PDF Format
|
DWG Format
|
DXF Format
|
|
|
SS5 (1-1/2″ Square Shaft) – Leads
|
 |
|||
|
SS5 (1-1/2″ Square Shaft) – Extensions
|
 |
|||
|
SS150 (1-1/2″ Square Shaft) – Leads
|
|
|||
|
SS150 (1-1/2″ Square Shaft) – Extensions
|
|
|||
|
SS175 (1-3/4″ Square Shaft) – Leads
|
|
|||
|
SS175 (1-3/4″ Square Shaft) – Extensions
|
|
|||
|
RS2875.203 (2-7/8″ OD Pipe) – Leads
|
 |
|||
|
RS2875.203 (2-7/8″ OD Pipe) – Extensions
|
 |
|||
|
RS2875.276 (2-7/8″ OD Pipe) – Leads
|
|
|||
|
RS2875.276 (2-7/8″ OD Pipe) – Extensions
|
|
|||
|
RS3500.300 (3-1/2″ OD Pipe) Leads & Extensions
|
|
|||
|
Helical PULLDOWN® Micropile – Leads
|
 |
|||
|
Helical PULLDOWN® Micropile – Uncased Plates
|
 |
|||
|
Helical PULLDOWN® Micropile – Cased Plates
|
|
|||
|
Instant Light Foundations (various sizes available)
|
 |
|||
|
DESCRIPTION
|
PDF Format
|
DWG Format
|
DXF Format
|
|
|
New Construction Cap (SS5/SS150)
|
 |
|||
|
New Construction Cap (SS175)
|
|
|||
|
New Construction Cap (Round Shafts)
|
|
|||
|
New Construction Cap w/ Rebar (Square Shaft)
|
 |
|||
|
New Construction Cap w/ Rebar (Round Shaft)
|
|
|||
|
Direct Jack (DJ) Underpinning Bracket (Square Shaft)
|
 |
|||
|
Direct Jack (DJ) Underpinning Bracket (Round Shafts)
|
|
|||
|
Standard Underpinning Bracket (Square Shaft)
|
 |
|||
|
Light Duty Bracket (Porch Bracket)
|
 |
|||
|
Concrete Slab Bracket
|
 |
|||
|
Walkway Bracket
|
 |
|||
NOTES:
Illustrations are for graphical representation only – Not to Scale
